KDW PS5 ANALYZER

May 21, 2025

2 min read

Updated: Sep 3

Main Feature :

- Analyze ps5 from Usb TTL with 12v standby voltage + list error code + text sollution ( Graphically mark update periodically )

- Analyze From BIOS/NOR.BIN + list error code + text sollution ( Graphically mark update periodically )

- Manual Input code for analyzing

- 18 Measurement Pin ( updated periodically )

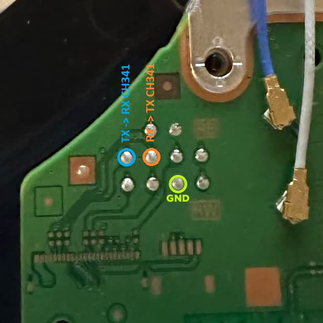

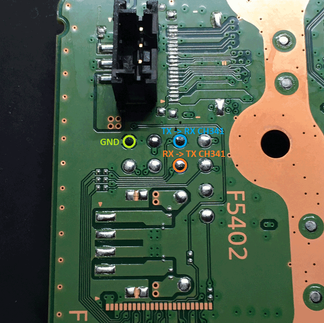

- Include uart wiring diagram

- One time license + free update forever + Grup for discussion .

Secondary Feature :

PS5 FLASH SUITE >

[ You need PICO 2040 Zero for this operation, Assemble byself, include PICO Wiring And assembling guide in the web ]

- simple just Prepare Pico , contact me to activate Menu, then click on Flash Pico button , after installed fw, Install wiring from pico to Nor chip onboard. then you can use pico for FLASH SUITE .

Main Operation :

- Dump / Flash Bios .bin

- Rebuild Bios data > Repair Bios Data Corruption

> Rebuild Bios data from donor for best result

> build Bios data from Template

[ This is for fixing No POWER, 3BeepOF Death , Missing BT / Wifi Connection, BD Update Error bypass ]

- Validate original Bios data .

Future Update :

> Live measure with self build STM32/ESP/PICO , With some component , 3D Print Case i have included for this tool. you need 2 probe & banana jack for Red and black probe, you will be guided automatically via app main screen to measure target test POINT . Live measurement screen will be command you to measure target in example Dialog IC I/O in 12v standby mode , when you touch test point with probe > screen will be show : PASS [ Green ] / BAD [ Yellow ] / FAIL [ Red ] . this is meaning this point is good / not good / broken line, then you can check rail manually for fix this issues.

> Basic Schematic for voltage, communication & Pinout Rail .

> 12v phase analysis Screen mode : this is will enable screen in wave analysis mode like a simple osciloscope . with this app will automatically scan / analyzing Wave for estimate the damage in general, this mode will be check for STAGE 1 , STAGE 2 Boot Sequence . in example in WORKING GOOD stage , STAGE 1 : +- 321 mA . STAGE 2 : +- 7 – 10 mA . SHORT NEAR HDMI encoder IC Stage : STAGE 1: +- 5 mA . STAGE 2 : +- 5 mA .
